2025 Isuzu F Series

BRAND NEW 2025 ISUZU FYJ 300-350 AUTO XLWB 8x4
8.0-METRE HEAVY-DUTY TRAY WITH REAR-MOUNTED HIAB MOFFETT
DELIVER IT. UNLOAD IT. MOVE ON.

Registration pricing included for Victorian customers only, interstate registration can be offered if desired.

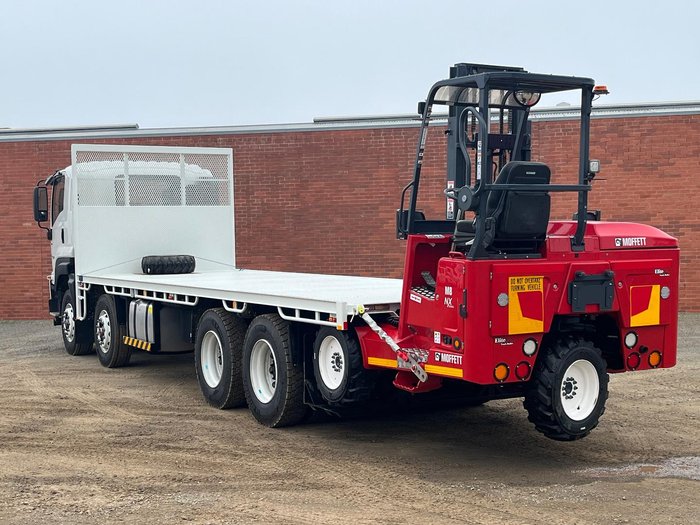

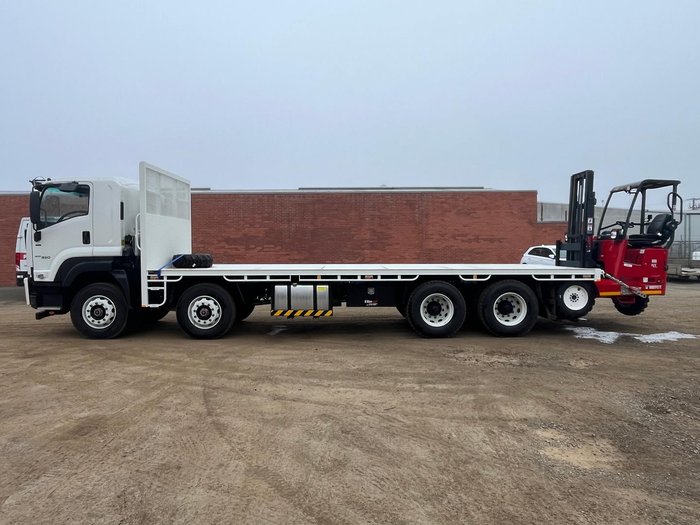

Take control of every delivery with this brand-new 2025 Isuzu FYJ 300-350 AUTO XLWB, fitted with an 8,000 mm heavy-duty tray and a rear-mounted HIAB MOFFETT truck-mounted forklift.

This complete self-unloading package is ideal for building supplies, timber, steel, landscaping materials, rural deliveries and any operation that needs to unload independently without relying on equipment at the customer’s site.

KEY HIGHLIGHTS
Brand-new 2025 Isuzu FYJ 300-350 AUTO XLWB
8x4 configuration
30,000 kg GVM
45,000 kg GCM
257 kW / 350 PS turbo-diesel power
1,422 Nm of torque
Allison 4430 six-speed automatic transmission
Hendrickson rear airbag suspension
8,000 mm x 2,300 mm heavy-duty tray
Rear-mounted HIAB MOFFETT forklift
2,500 kg nominal forklift capacity
3,000 mm forklift lift height
All-wheel-drive Moffett with differential lock
Sleeper cab with premium driver comfort
Isuzu factory warranty and roadside support
ENGINE AND TRANSMISSION

Power comes from Isuzu’s proven 6UZ1-TCC 9.8-litre, six-cylinder turbo-diesel engine, delivering:

257 kW / 350 PS at 2,000 rpm
1,422 Nm of torque at 1,400 rpm
Electronically controlled variable-nozzle turbocharger
Air-to-air intercooler
High-pressure common-rail direct fuel injection
ADR 80/03 Euro V compliant emission system
400-litre lockable aluminium fuel tank

The truck is equipped with an Allison 4430 six-speed automatic transmission, featuring sixth-generation electronic controls with adaptive shifting, push-button gear selection and long-life TranSynd synthetic transmission fluid.

CHASSIS, SUSPENSION AND DRIVELINE

Built for demanding heavy-duty delivery work, the FYJ includes:

8x4 configuration with twin steer axles
6,700 mm extra-long wheelbase
Meritor tandem drive rear axles
Inter-axle differential lock
Cross locks fitted to both rear axles
Hendrickson HAS461 rear airbag suspension
Load-sharing front suspension
Full air-operated front and rear drum brakes
Air-controlled exhaust brake
Power-assisted steering
Heavy-duty cold-riveted ladder chassis
SAFETY AND VISIBILITY
Anti-Lock Braking System
Driver airbag
Driver’s seatbelt pretensioner
Low-light-capable reversing camera
Reverse warning alarm
LED main-beam headlights
Halogen high-beam headlights
Front fog lights
Heated and electrically operated exterior mirrors
Additional independently adjustable convex spot mirrors
Roof-mounted clearance lights
Remote central locking and engine immobiliser
INTERIOR AND CAB

The spacious three-seat cab is designed to keep the driver comfortable throughout long working days.

ISRI air-suspension driver’s seat
Adjustable front passenger bucket seat
Folding centre seat
ADR-compliant sleeper compartment with mattress
Automatic climate-control air conditioning
Tilt and telescopic steering column
Cruise control
Push-button automatic transmission controls
Electric windows
Heavy-duty anti-slip entry steps
Overhead storage compartments
Centre console and storage tray
Twin cup holders
Door pockets and passenger glovebox
USB fast-charging outlet
24-volt power outlet
MYISUZU CO-PILOT MULTIMEDIA SYSTEM
10.1-inch high-definition touchscreen
Truck-specific GPS navigation
Live traffic and map updates through smartphone connection
Apple CarPlay and Android Auto compatibility
AM/FM/DAB+ radio
Wi-Fi connectivity
USB 3.0 connection
Wireless phone-charging facility
32 GB internal storage
HEAVY-DUTY TRAY SPECIFICATIONS

The truck is fitted with a purpose-built tray measuring:

8,000 MM LONG x 2,300 MM WIDE

Tray equipment includes:

Heavy-duty 5 mm chequer-plate floor
Front headboard with chequer plate to the bottom of the cab window
Grab handles fitted to the leading edge of the headboard
Raised RSJ side coaming rails
Sweep-out rear design
Six ratchet load binders mounted in a track on the left-hand side
Winch bar supplied
Dedicated winch-bar storage at the front of the headboard
1,200 mm underbody toolbox fitted to the left-hand side
Rear mounting arrangement designed for the HIAB MOFFETT
Protective RHS structure around the fuel and air tanks
OEM rear combination lights
Three LED side-clearance lights per side
Three LED side-indicator lights per side
OEM reversing camera relocated to the rear centre of the body
ADR-compliant mudguards and mudflaps
Two-pack white painted finish
Black-finished underbody
100 x 50 mm RHS main runners
75 x 50 mm RHS cross bearers
VSB6-compliant body subframe
VASS engineering supplied

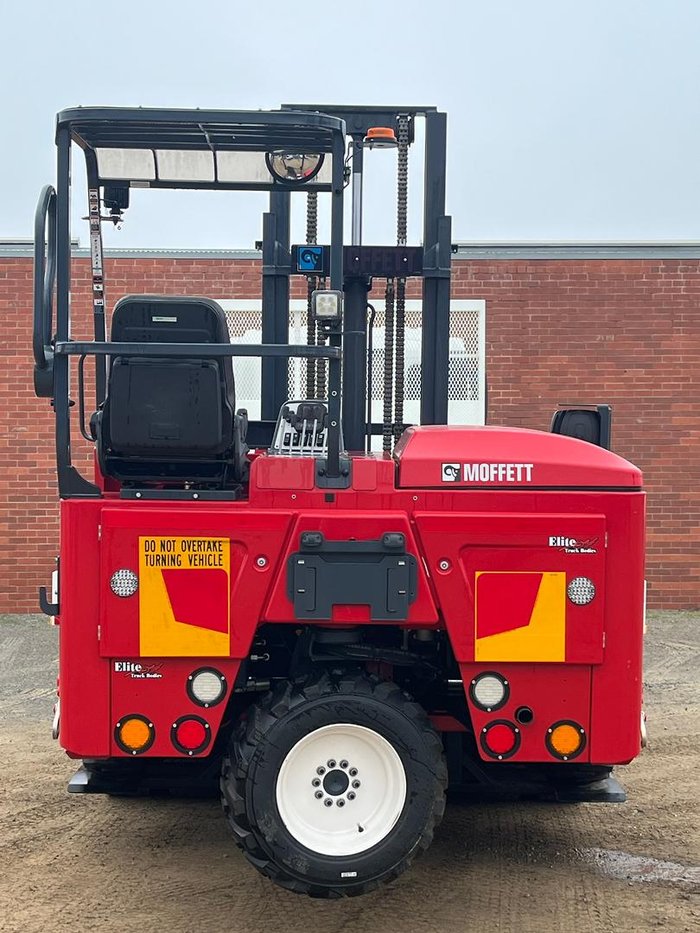

REAR-MOUNTED HIAB MOFFETT

The HIAB MOFFETT M8 25.3NX-V35-T4 travels securely at the rear of the truck, allowing the driver to carry an unloading solution to every job.

MOFFETT SPECIFICATIONS
Nominal 2,500 kg lifting capacity at a 600 mm load centre
3,000 mm lift height
Standard hydraulic side shift
Constant all-wheel drive
Switchable differential lock for additional traction
10 x 16.5 skid-steer-type pneumatic tyres
Kohler diesel engine
Hydrostatic transmission
1,150 mm FEM3 forks
Approved Roll Over Protection System
LED road-ready headlights
LED work lights with load projection
LED flashing safety beacon
Integrated LED rear lights
Convex operator-compartment mirror
Ground Start system for safer and easier mounting
Lowers & Go mounting-chain tension system
Spare wheel and rim

The Moffett provides greater delivery flexibility by allowing the operator to unload materials at construction sites, rural properties, restricted-access locations and customer premises where a forklift may not be available.

ISUZU CARE

Subject to Isuzu’s applicable warranty conditions, this truck is supported by:

Six-year standard factory warranty
Coverage up to 600,000 km or 10,000 engine hours, whichever occurs first
Six-year roadside assistance
24-hour, seven-day support with unlimited kilometres
WHY BUY FROM ISUZU ?

When you purchase from Isuzu , you receive more than just a truck.

A complete truck, tray and rear-mounted Moffett package
One experienced team to assist throughout the purchase and handover
Dedicated customer service before, during and after delivery
Fit-for-purpose advice for your specific transport operation
Isuzu-trained servicing and technical support
Access to genuine Isuzu parts
Ongoing warranty and aftersales assistance
Support through the broader Auto Group branch network
Competitive finance solutions available to approved applicants
A regional dealership that understands transport, construction, agriculture and trade applications
ENQUIRE TODAY

Do not settle for a truck that only gets the load to the destination. This Isuzu FYJ AUTO with rear-mounted HIAB MOFFETT gives your business the ability to transport, unload and complete the delivery using one integrated vehicle.

Contact the team at Isuzu for pricing, finance options or to arrange an inspection.
